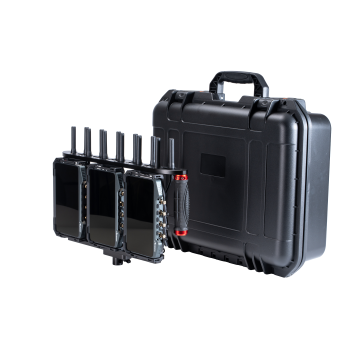

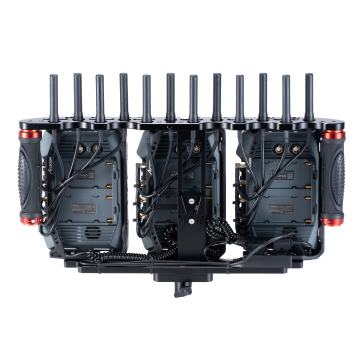

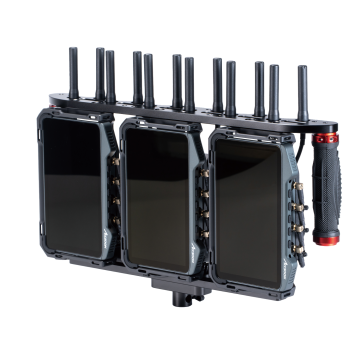

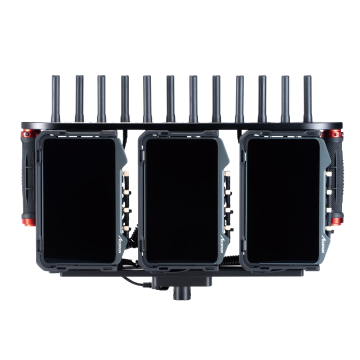

Accsoon Portable Triple Monitor Rig for CineView M7 Pro
- Brand: Accsoon
- Model: Accsoon Portable Triple Monitor Rig for CineView M7 Pro
- Availability: Pre-Order
- Option SKU:
- $4,109.00
- Ex Tax: $3,769.73
Specifications
| Displayscreen | 7” LCD |
| Resolution | 1920 × 1080 pixels |
| PPI | 323 |
| Aspectratio | 16:9 |
| Brightness | 1000 nits |
| Contrast ratio | 1000:1 |
| Viewing angle | 176°/176° |
| Backlight type | Edge-Lit Ultra-transparent LED Backlight |
| Screen color calibration | Supported |
| LUT | 1D and 3D Cube LUTs Supported 1D: up to 4096 points 3D: up to 127 points |
| Video input port | HDMI® 2.0/3G-SDI |
| Video output port | HDMI® 2.0/3G-SDI |
| HDMI® videoinput format | 4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD(3840*2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 |
| SDI video input format | 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B 1080i: 50/59.94/60 |
| HDMI® video output format | 4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840*2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 |
| SDI video output format | 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A 1080i: 50/59.94/60 |
| DC port | 6.0~16.8V 5.5mm*2.1mm Center Positive |
| Compatible battery | Compatible with NP-F550, NP-F750, NP-F970 Batteries |
| USB-C power input port | PD3.0 9V/3A, 12V/3A, 15V/3A |
| USB-Cpower output port | Maximum: 5V/2A |
| Microphone jack | 3.5mm TRS |
| Headphone jack | 3.5mm CTIA |
| Microphone input audio sampling | 16bit, 48KHz |
| Power consumption | 12W~28W（Varies according to actual usage） |
| Housing | Aircraft-grade Aluminium Alloy |
| Heatdissipation | Active + Passive Cooling |
| Wireless transmission latency | 60ms |
| Wireless transmission distance | Dual-Band Connection: 350 meters |
| Work environment temperature | -10- 40℃ |
| Weight (antennas excluded) | 494.3g |
| Dimensions (antennas excluded) | 182.2*120.7*31.5mm |

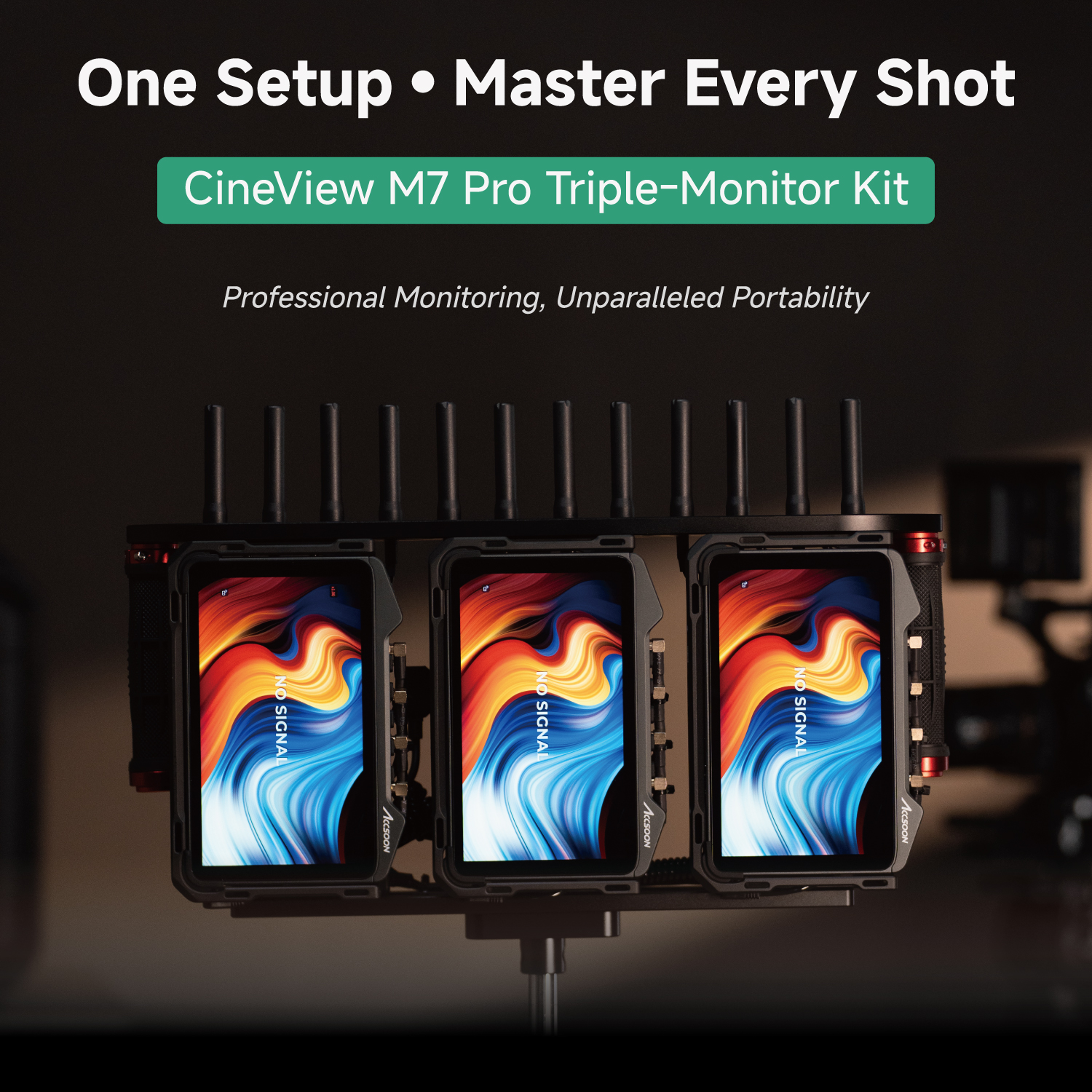

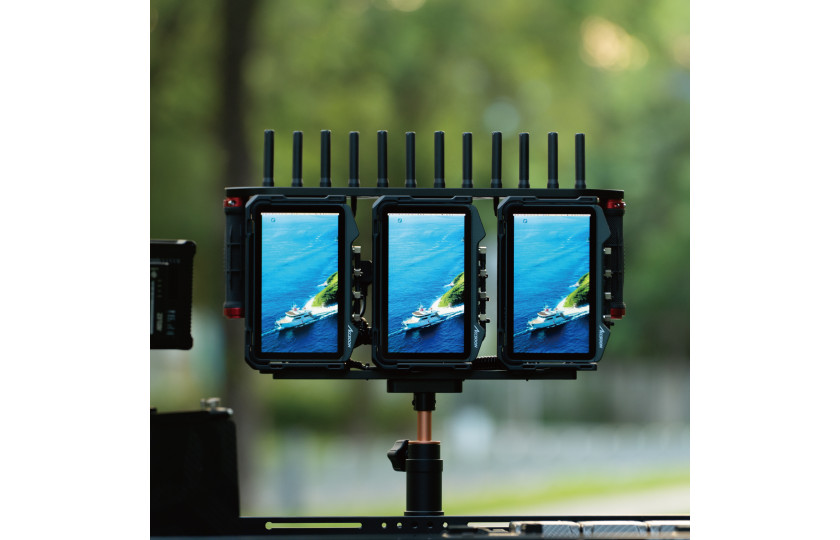

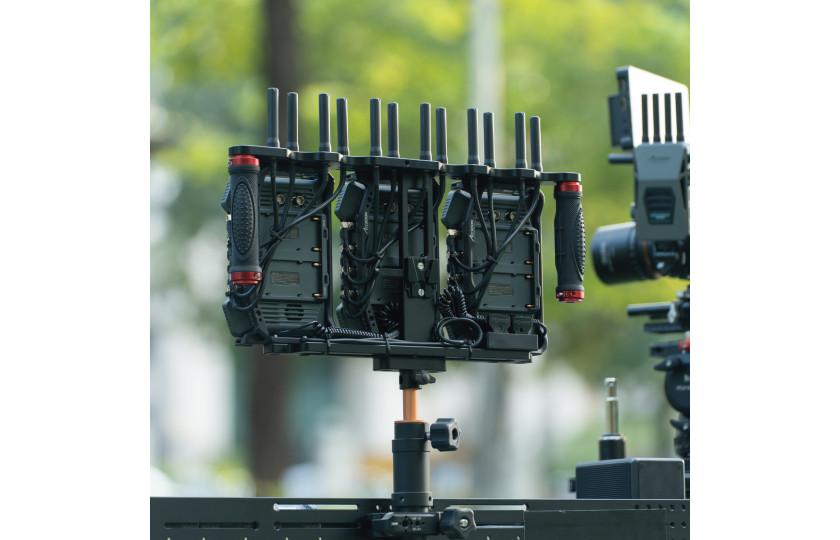

All-in-One Wireless Workstation
The Accsoon CineView M7 Pro Portable Triple Monitor Rig transforms your setup into a powerful, all-in-one wireless workstation. Designed for filmmakers and content creators, it features an integrated long-range wireless video transmitter and receiver, allowing seamless connection to any Accsoon CineView transmitter without the need for external receivers.
Powered by Accsoon’s patented dual-band transmission technology, the M7 Pro delivers ultra-low latency wireless monitoring for smooth, reliable performance on set.
Stay in full control of your image with professional-grade monitoring tools including LUT Box, False Color, and Waveform. Every function is easily accessible via customizable shortcut buttons, giving you fast and intuitive control to nail every cinematic shot with confidence.

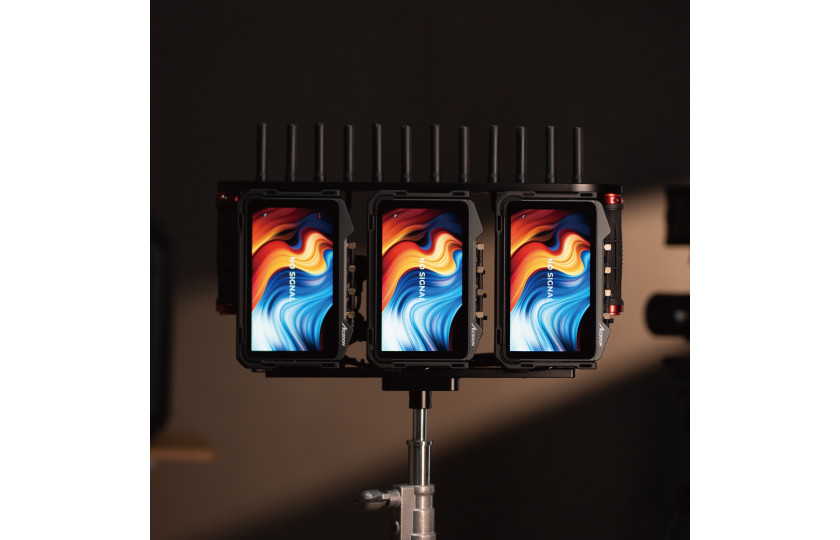

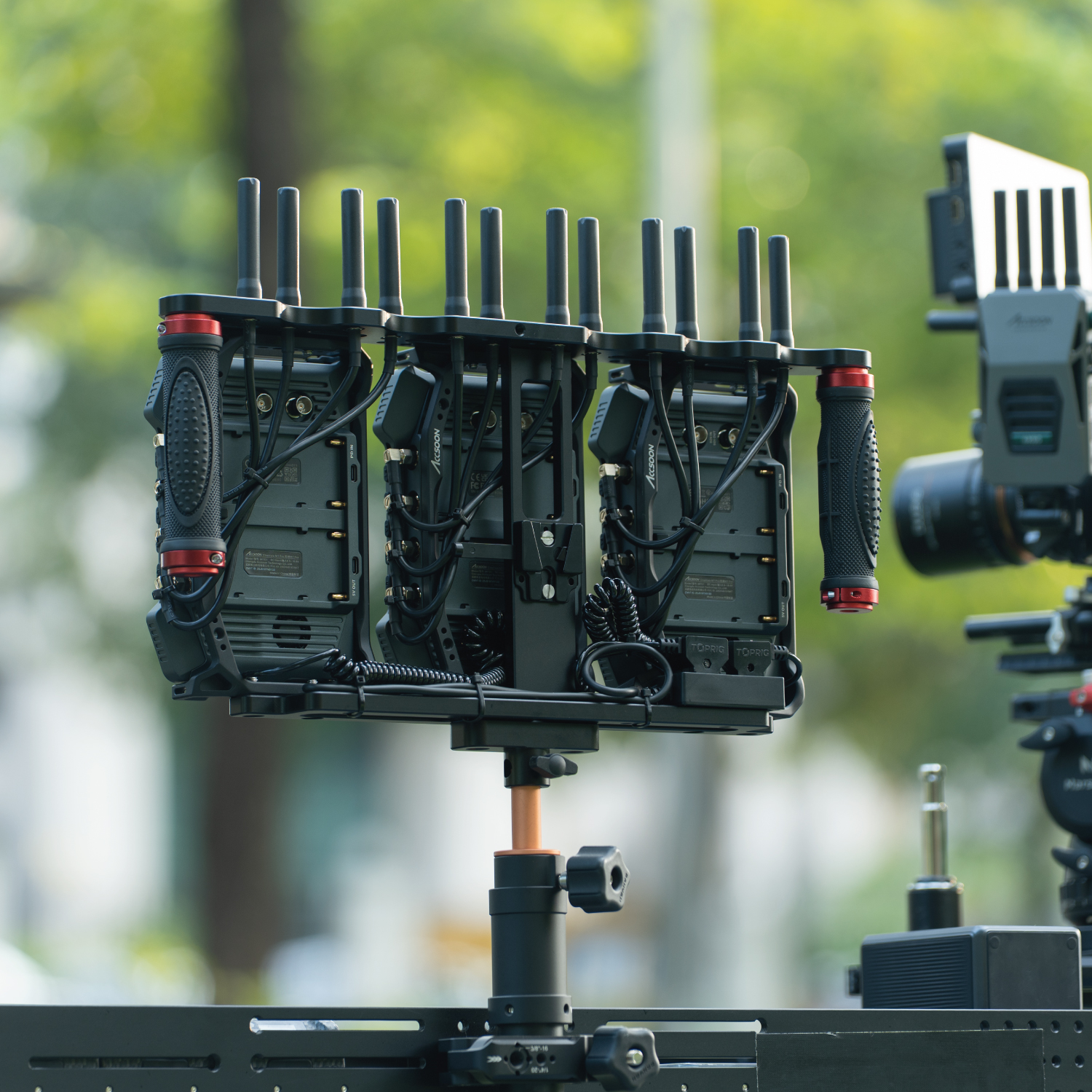

Photo Samples
