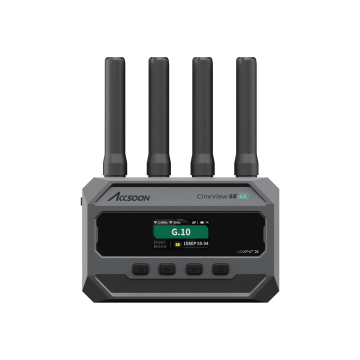

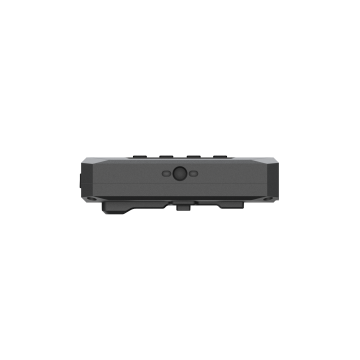

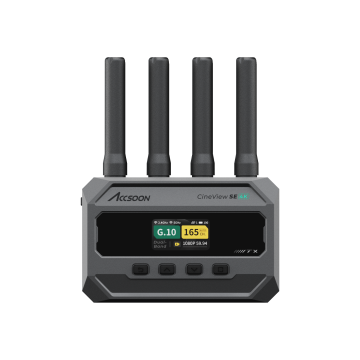

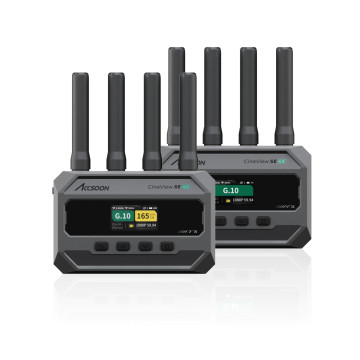

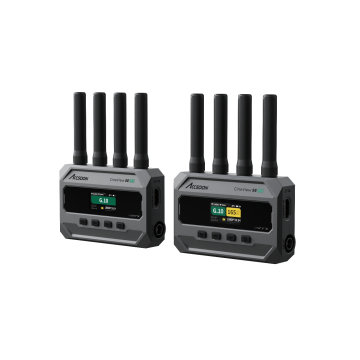

Accsoon CineView SE 4K TX/RX Kit
- Brand: Accsoon
- Model: Accsoon CineView SE 4K
- Availability: Pre-Order
- Option SKU:
- $649.00
- Ex Tax: $595.41
Specification
| Transmitter | Receiver | |
| Protocol | Proprietary RTMS4.0 protocol developed by Accsoon | |

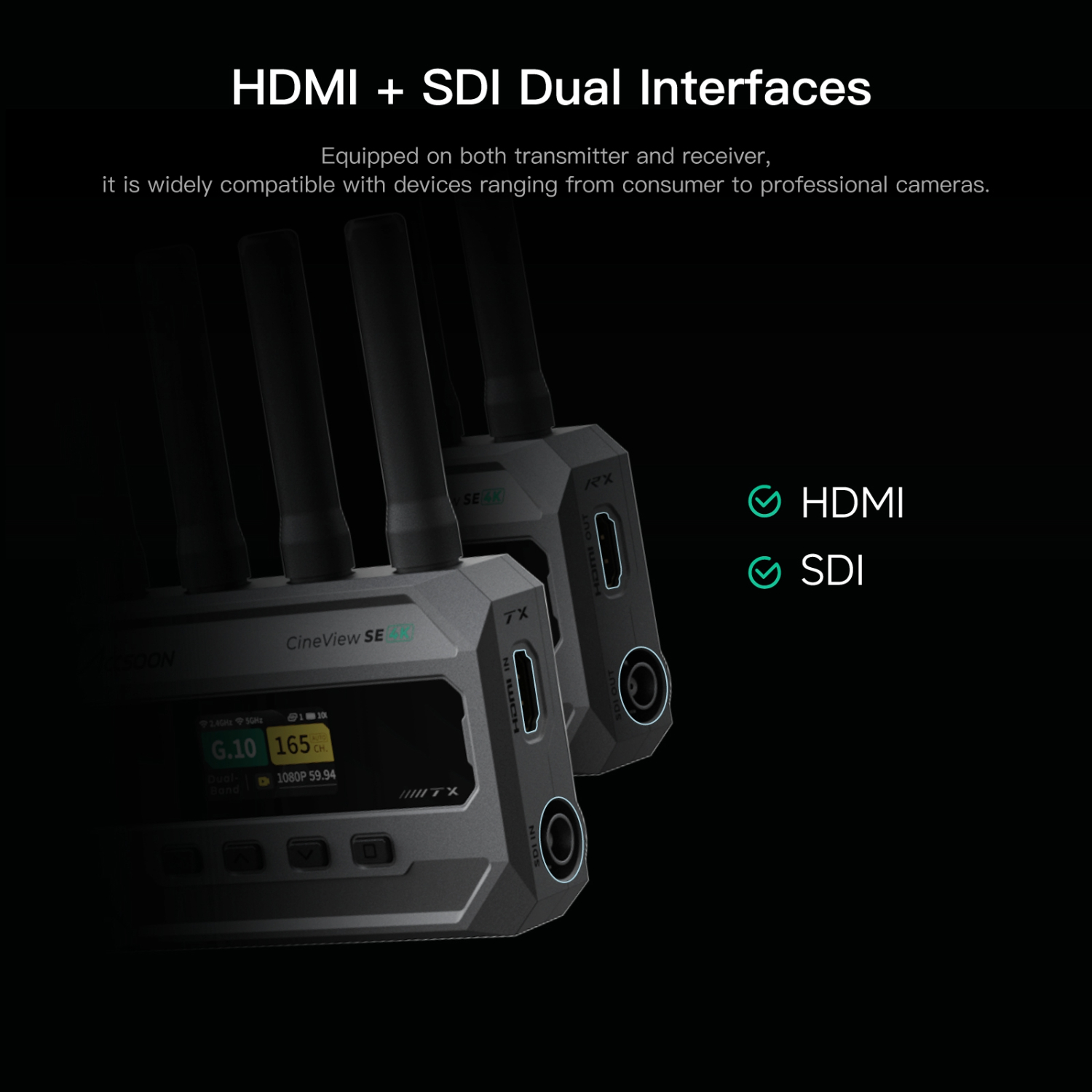

| Video Input Port | HDMI, 3G SDI | |
| Video Output Port | USB video out | HDMI 3G SDI USB video out |
| Camera Control | USB-C | |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps | |
| HDMI Input Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p | |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A | |
| HDMI Output Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p | |
| DC Port | 5.5mmx2.1mm, center positive | |
| DC Voltage | 7.4~16.8V | |

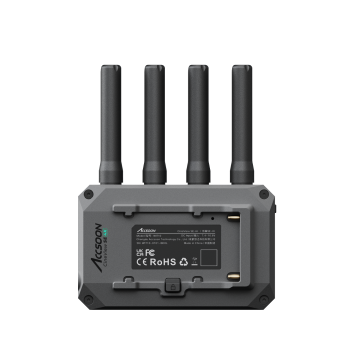

| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery | |
| Power Consumption | 4.4W average *Without powering other devices | |
| Audio Input | HDMI embedded, SDI embedded | |
| Latency | 1080p < 50ms [5] 4K ＜ 100ms [6] (Camera latency excluded) | |
| Transmission Range | 400 meters [7] (No obstacles, no interference) | |
| Operating Environment Temperature | -10~40℃ | |
| Dimensions (Antennas Excluded) | 110mm*32.7mm*74mm | |
| Weight (Antennas Excluded) | 245g | 245g |
CineView SE 4K is a Dual-Band 4K30 wireless video transmission system for enhanced stability, with 50ms low latency and 400 meters range. It delivers ultra-high definition wireless video with fully end-to-end 4K30 capabilities.

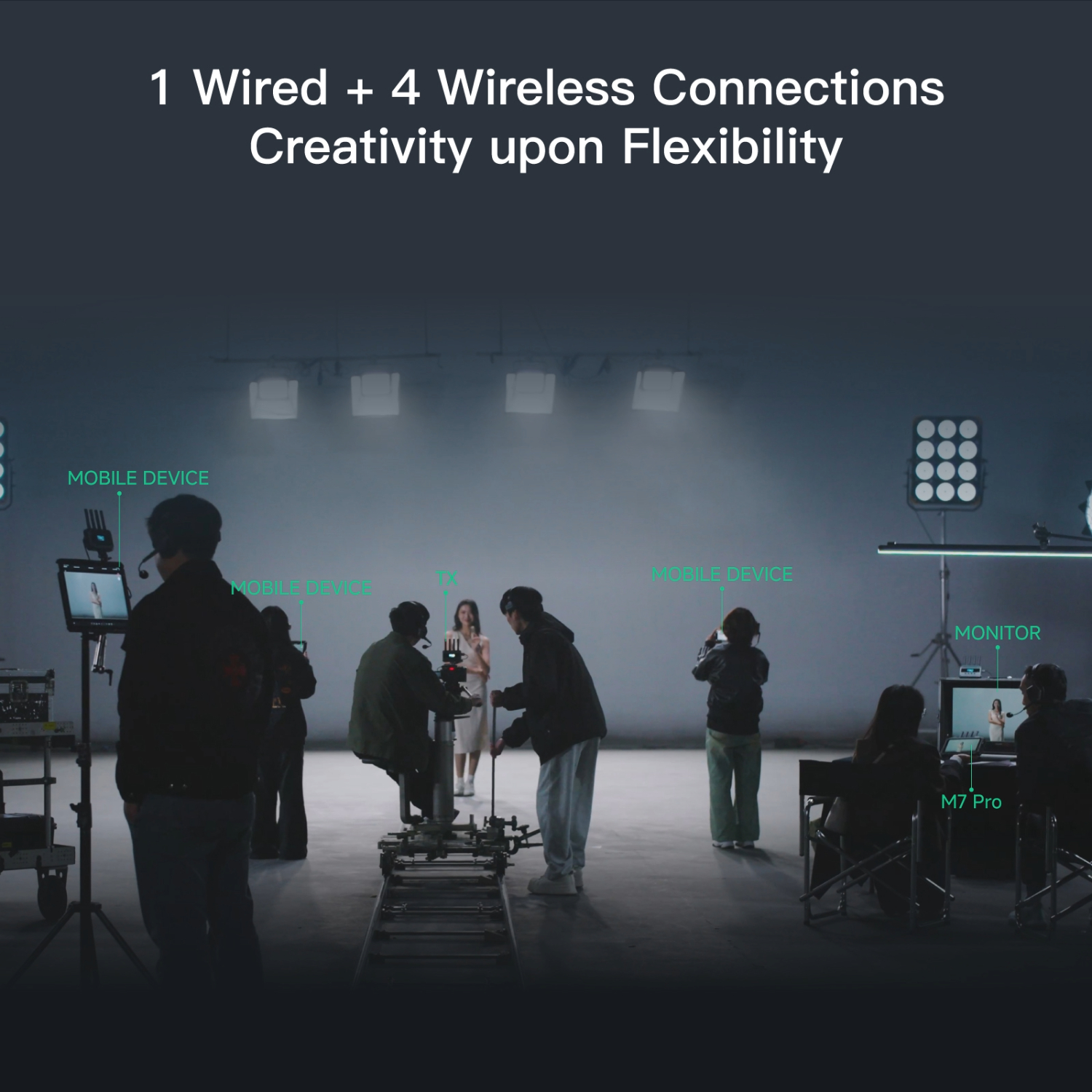

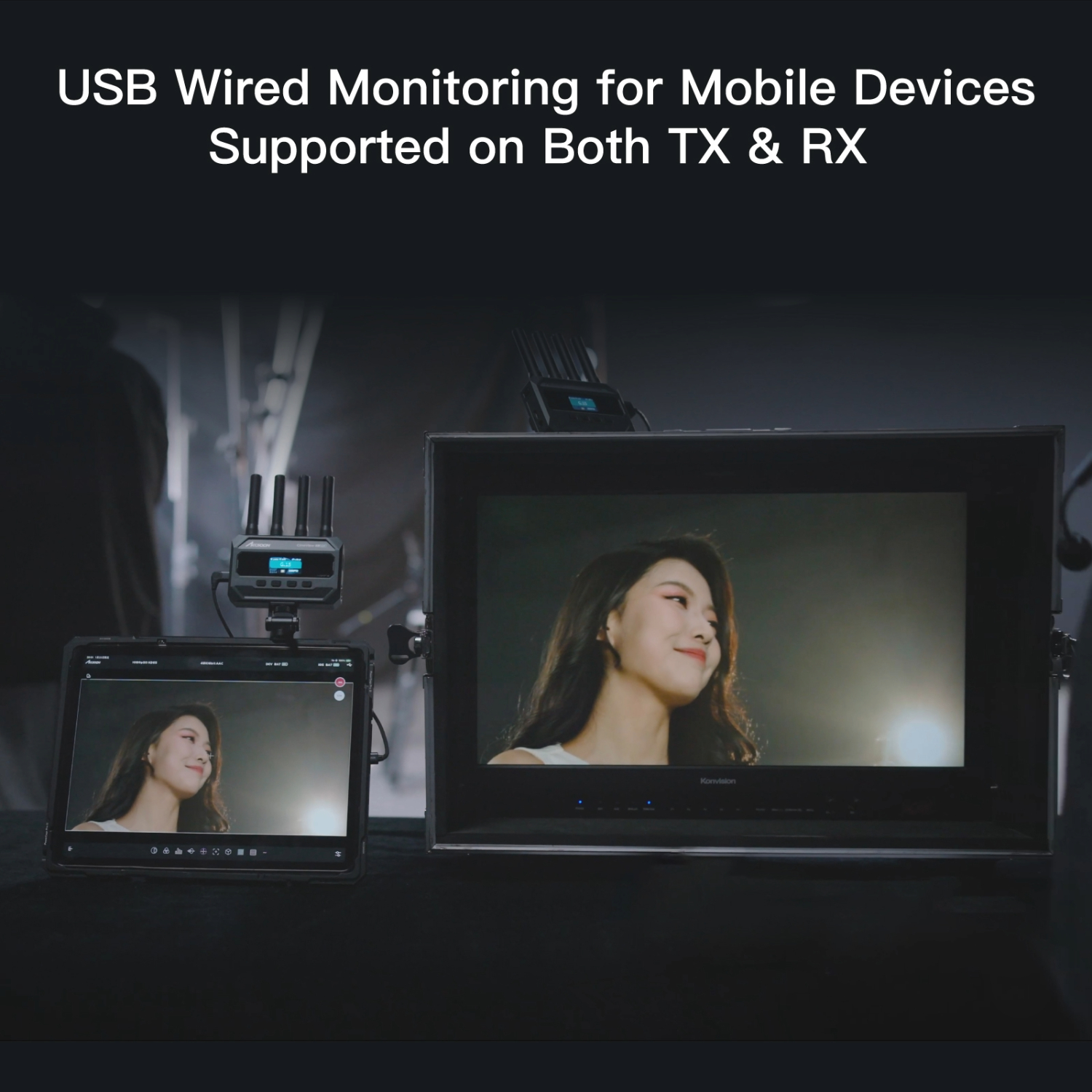

In addition to SDI/HDMI monitoring, the Accsoon SEE App supports wireless connections on mobile devices, offering professional monitoring features and capability to upload recorded clips to cloud platforms. The newly add wired USB transmission connection on both transmitter and receiver allows a connected mobile device to be a fully capable professional monitor, significantly enhancing on-site monitoring flexibility. One set of wireless transmission that meets diverse needs.
