Accsoon CineView Master 4K Lite
- Brand: Accsoon
- Model: -
- Availability: In Stock
- Option SKU:
- $989.00
- Ex Tax: $907.34

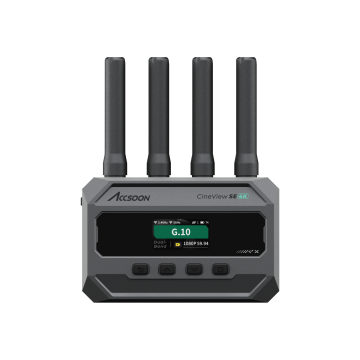

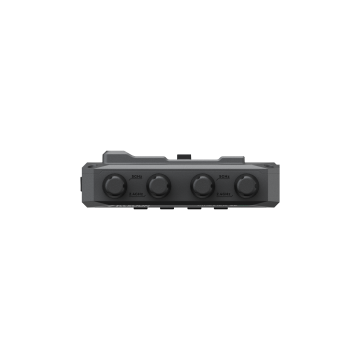

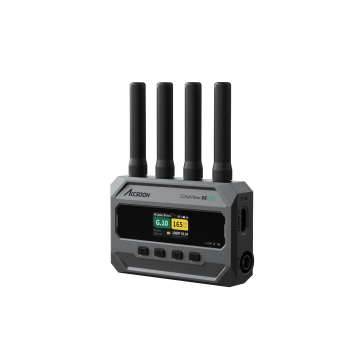

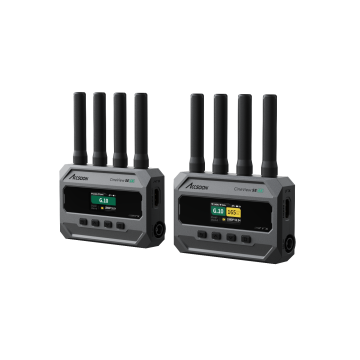

Accsoon CineView SE 4K

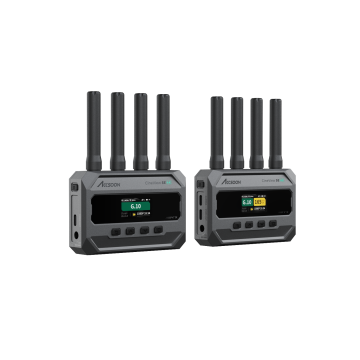

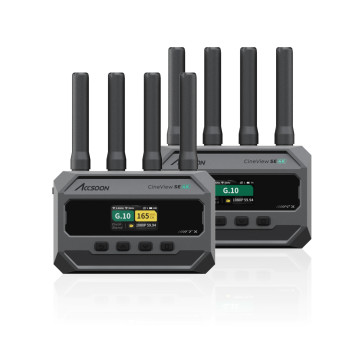

Accsoon CineView SE 4K is a Dual-Band 4K30 wireless video transmission system for enhanced stability, with 50ms low latency and a 400 meters range. It delivers ultra-high-definition wireless video with fully end-to-end 4K30 capabilities.
In addition to SDI/HDMI monitoring, the Accsoon SEE App supports wireless connections on mobile devices, offering professional monitoring features and the capability to upload recorded clips to cloud platforms. The newly added wired USB transmission connection on both transmitter and receiver allows a connected mobile device to be a fully capable professional monitor, significantly enhancing on-site monitoring flexibility. One set of wireless transmission that meets diverse needs.
Product Features
- End-to-End True 4K30 Transmission
- Dual-Band Wireless Technology: 2.4GHz + 5GHz + DFS
- 50ms Low Latency
- 400m Transmission Range
- Camera Control Compatibility
- Input Options: SDI Input, HDMI Input, USB Video Output
- Signal Conversion: SDI to HDMI and HDMI to SDI
- Simultaneous Outputs: SDI and HDMI
- Multi-Device Monitoring: Up to 5 devices via Accsoon SEE App
- High Performance A/V Processor
- Power Options: DC Input and NP-F Battery
- Durable Construction: Aerospace-grade aluminum alloy
- 1.05 inch Full-Color LCD Display
Accsoon CineView SE 4K | ||
| Transmitter | Receiver | |
| Protocol | Proprietary RTMS4.0 protocol developed by Accsoon | |
| Video Input Port | HDMI, 3G SDI | |
| Video Output Port | USB video out | HDMI 3G SDI USB video out |
| Camera Control | USB-C | |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B | |
| HDMI Input Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p | |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A | |
| HDMI Output Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p | |
| DC Port | 5.5mmx2.1mm, center positive | |
| DC Voltage | 7.4~16.8V | |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery | |
| Power Consumption | 4.4W average *Without powering other devices | |
| Audio Input | HDMI embedded, SDI embedded | |
| Latency | 1080p < 50ms [5] 4K ＜ 100ms [6] (Camera latency excluded) | |
| Transmission Range | 400 meters [7] (No obstacles, no interference) | |
| Operating Environment Temperature | -10~40℃ | |
| Dimensions (Antennas Excluded) | 110mm*32.7mm*74mm | |
| Weight (Antennas Excluded) | 245g | 245g |
Accsoon CineView SE 4K is a dual-band wireless video transmission system designed for enhanced stability and performance. Supporting true end-to-end 4K30 transmission, it delivers ultra-high-definition video with an impressive 50ms low latency and up to 400m transmission range.
Built with both 2.4GHz and 5GHz bands plus DFS technology, it ensures a more reliable and interference-resistant connection. In addition to SDI and HDMI monitoring, the Accsoon SEE App enables wireless monitoring on mobile devices, complete with professional tools and the ability to upload recorded clips directly to cloud platforms.
A newly added wired USB transmission on both the transmitter and receiver allows mobile devices to function as fully capable professional monitors, offering greater flexibility for on-site workflows.
One powerful wireless system designed to meet diverse production needs.
